Model

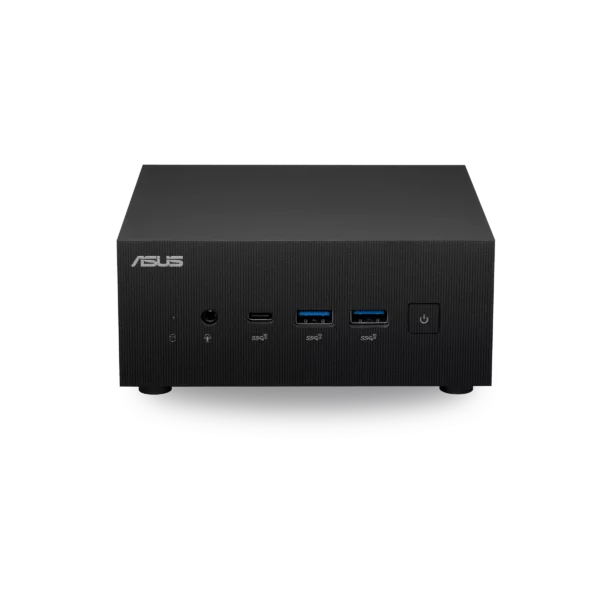

ASUS ExpertCenter PN64
Operating System
Windows 11 Home
Windows 11 Pro
Windows 10 IoT Enterprise
Windows 10 Pro
Windows 11 Pro EDU
CPU
Intel® Core™ i7-13700H Processor, 35W TDP
Intel® Core™ i5-13500H Processor, 35W TDP
Intel® Core™ i7-12700H Processor, 35W TDP
Intel® Core™ i5-12500H Processor, 35W TDP
Intel® Core™ i3-1220P Processor, 28W TDP
Intel® Core™ i7-13700H Processor, 35W TDP
Intel® Core™ i5-13500H Processor, 35W TDP
Intel® Core™ i7-12700H Processor, 35W TDP
Intel® Core™ i5-12500H Processor, 35W TDP
Intel® Core™ i3-1220P Processor, 28W TDP
Chipset
Integrated
Graphics
Integrated - Intel® Iris® Xe Graphics (i7/i5 Processor)
Integrated - Intel® UHD Graphics (i3 Processor)
*Intel® Iris® Xe Graphics requires 128-bit dual channel memory for optimal performance
Integrated - Intel® Iris® Xe Graphics (i7/i5 Processor)
Integrated - Intel® UHD Graphics (i3 Processor)
*Intel® Iris® Xe Graphics requires 128-bit dual channel memory for optimal performance
Memory
2 x DDR5 SO-DIMM, Max. 16GB x 2(12th Gen CPU) or 32GB x 2(13th Gen CPU)
* Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.
2 x DDR5 SO-DIMM, Max. 16GB x 2(12th Gen CPU) or 32GB x 2(13th Gen CPU)
* Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.
Storage
1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD
1 x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD
* 2.5" HDD bay only supports 7mm height
1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD
1 x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD
* 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details.
Wireless Data Network
Intel® Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card
*Bluetooth v5.2 and later version functions to be supported in Windows 11 or later.
*WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.
Intel® Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card
*WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.
*Bluetooth v5.2 and later version functions to be supported in Windows 11 or later.
LAN
10/100/1000/2500 Mbps, 2.5G Intel® LAN
10/100/1000/2500 Mbps, 2.5G Intel® LAN
Audio
Realtek® ALC3251 HD Audio CODEC
Front(Side) I/O Ports
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x Audio Jack
1 x Kensington Lock(side)
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x Audio Jack
1 x Kensington Lock(side)
Back I/O Ports
1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input)
1 x USB 3.2 Gen2 Type-A
2 x HDMI 2.1 (Up to 4K@60Hz)
1 x Configurable Port
1 x 2.5G RJ45 LAN
1 x Padlock ring
1 x DC-in
1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input)
1 x USB 3.2 Gen2 Type-A
2 x HDMI 2.1 (Up to 4K@60Hz)
1 x Configurable Port
1 x 2.5G RJ45 LAN
1 x Padlock ring
1 x DC-in
Configurable Port Options
1 x HDMI 2.1 (Up to 4K@60Hz)
1 x DisplayPort 1.4
1 x COM
1 x VGA
1 x 2.5G LAN
1 x HDMI 2.1 (Up to 4K@60Hz)
1 x DisplayPort 1.4
1 x COM
1 x VGA
1 x 2.5G LAN
Speaker
No
Power Supply
19Vdc, 6.32A, 120W Power Adapter
19Vdc, 4.74A, 90W Power Adapter
19Vdc, 6.32A, 120W Power Adapter
19Vdc, 4.74A, 90W Power Adapter
Dimensions (W x D x H)
120 x 130 x 58 mm
120 x 130 x 58 mm
Weight
1.0KG(include 2.5" HDD)
0.75 kg(barebone)
Color
ECO Black
ECO Black
ECO Black, non-logo
Accessories
AC Adapter
Driver DVD (non OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)
AC Adapter
Driver DVD (non OS SKU only)
Power Cord
Screw Pack
User Manual
Warranty Card
Keyboard & Mouse (optional)
VESA Mount (optional)
Security
Trusted Platform Module (TPM)*
*on selected model
Trusted Platform Module (Firmware TPM)
Trusted Platform Module (TPM)*
*on selected model
Trusted Platform Module (Firmware TPM)
Certificates
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
