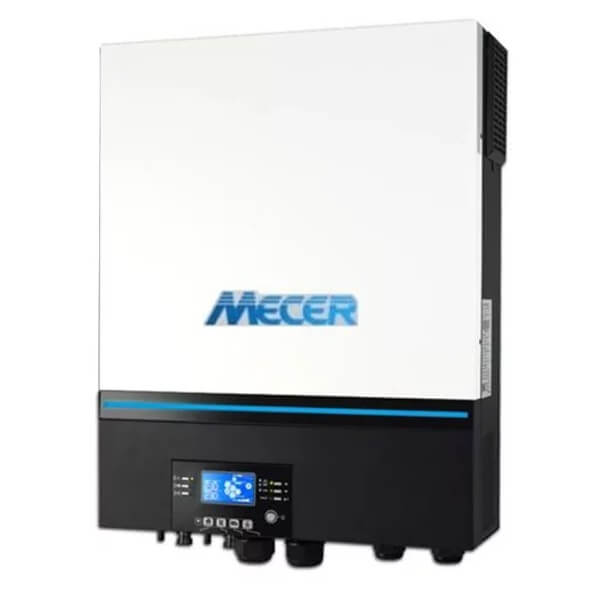

Mecer Axpert 11000VA 11000W Pure Sine Wave Hybrid Solar Inverter (SOL-I-AX-C-M)

SKU: SOL-I-AX-C-M

R179.00 Incl. VAT

Out of stock

Want to be notified when this product is back in stock?

Specifications

Mecer Axpert 11000VA 11000W Pure Sine Wave Hybrid Solar Inverter (SOL-I-AX-C-M) – Capacity: 11000VA/11000W, Input: Voltage: 230 VAC, Selectable Voltage Range: up to 170-280V AC, Frequency Range 50Hz / 60Hz (Auto sensing), Surge Power: 22 000VA, Waveform: Pure Sine Wave, Battery Voltage: 48V DC, Number of MPPTs: 2 x 5 500W, Communication Interface: RS232, USB, Dry Contact, Wi-Fi, RS485

What's in the Box

Mecer Axpert 11000VA 11000W Pure Sine Wave Hybrid Solar Inverter (SOL-I-AX-C-M)

Warranty

2 Year Limited Carry-in Warranty

Rated Power
11 000VA / 11 000W

Parallel Capability
Yes, 6 units. Parallel card included

Input
Voltage 230V

AC Selectable Voltage Range
170-280V AC (For Personal Computers)
90-280V AC (For Home Appliances)

Frequency Range
50Hz / 60Hz (Auto sensing)

Output
AC Voltage Regulation (Line & Batt Mode)

230V AC ±5%

Surge Power
22 000VA

Efficiency (Peak)
93%

Transfer Time
10ms (For Personal Computers); 20ms (For Home Appliances)

Waveform
Pure sine wave

No Load Power Consumption
<70W Dual Outputs
Yes

Battery
Battery Voltage

48V

DC Floating Charge Voltage
54V DC

Overcharge Protection
63V DC

Solar Charger & AC Charger
Solar Charge Type
MPPT

Maximum PV Array Power
11 000W

Number of MPPTs
2 X 5 500W

MPPT Range @ Operating Voltage
90-450V DC

Maximum PV Array Open Circuit Voltage
500V DC

Maximum Solar Charge Current
150A

Maximum AC Charge Current
150A

Maximum Charge Current
150A

Physical Dimensions D x W x H (mm)
147.4 X 432.5 X 553.6

Net Weight (kgs)
18.4kg

Communication Interface
RS232, USB, Dry Contact, Wi-Fi, RS485

Environment
Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature
-10°C to 50°C

Storage Temperature
-15°C to 60°C
